Astro C40 TR Thumbstick Kit Installation Instructions
Tags
TR Thumbstick Kit Install DIY C40 Astro

If you haven't purchased a thumbstick replacement kit with superior tension and control for your own Astro C40 TR, be sure to click on the following link to purchase one: https://www.wp.evilcontrollers.com/astro-c40-tr-thumbstick-kit

STEP 1:

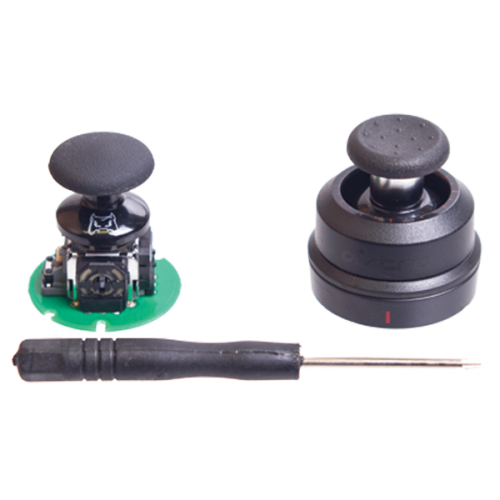

Gather pieces needed for assembly:
+ Astro thumbstick
+ Evil thumbstick assembly
+ Evil Stick
+ T6 Screwdriver

STEP 2:

Using the T6 screwdriver, remove the TWO (2) screws.
Place them in a safe area, as they are small and easy to lose.

STEP 3:

Remove the casing from the Astro thumbstick assembly,
then place it over the Evil thumbstick assembly.

STEP 4:

Using the T6 screwdriver, replace the TWO (2) screws.

STEP 5:

Your Astro thumbstick is now EVIL!

Print Version: https://www.wp.evilcontrollers.com/wp/wp-content/uploads/2019/10/Instructions-5x7.jpg
